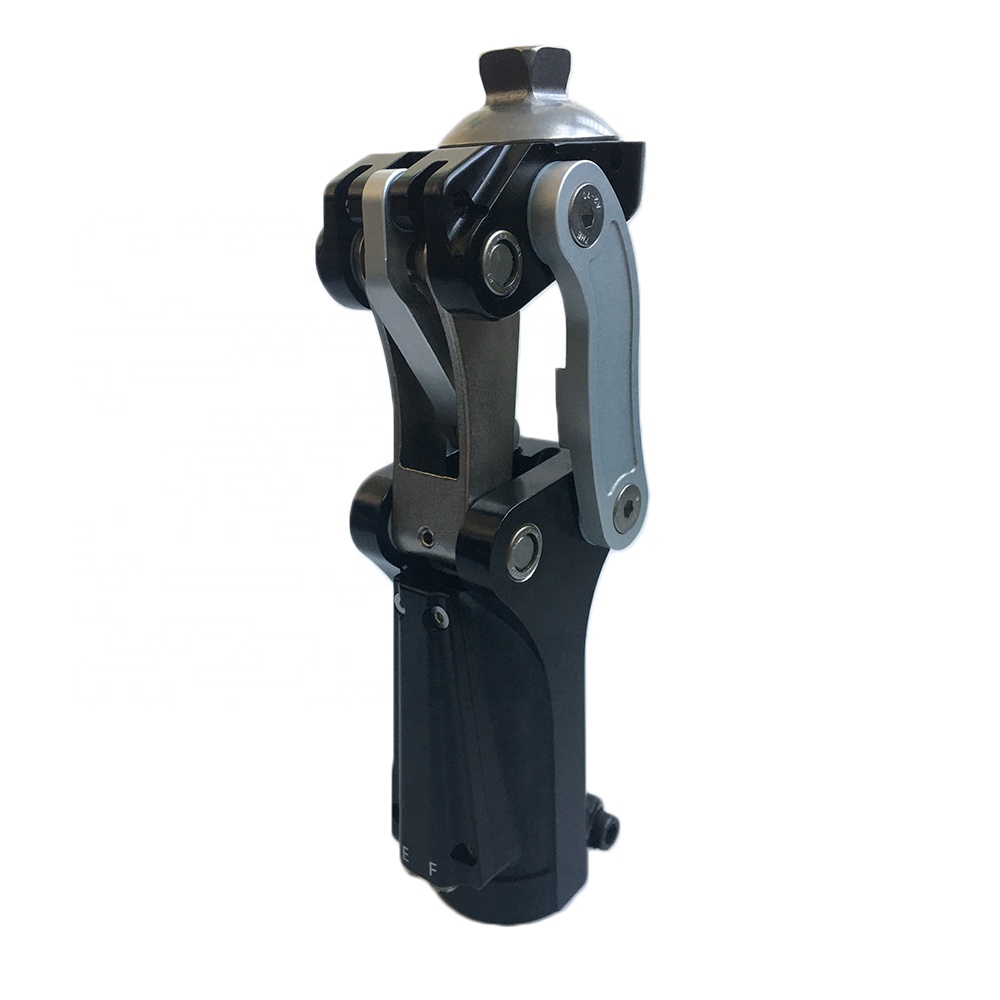

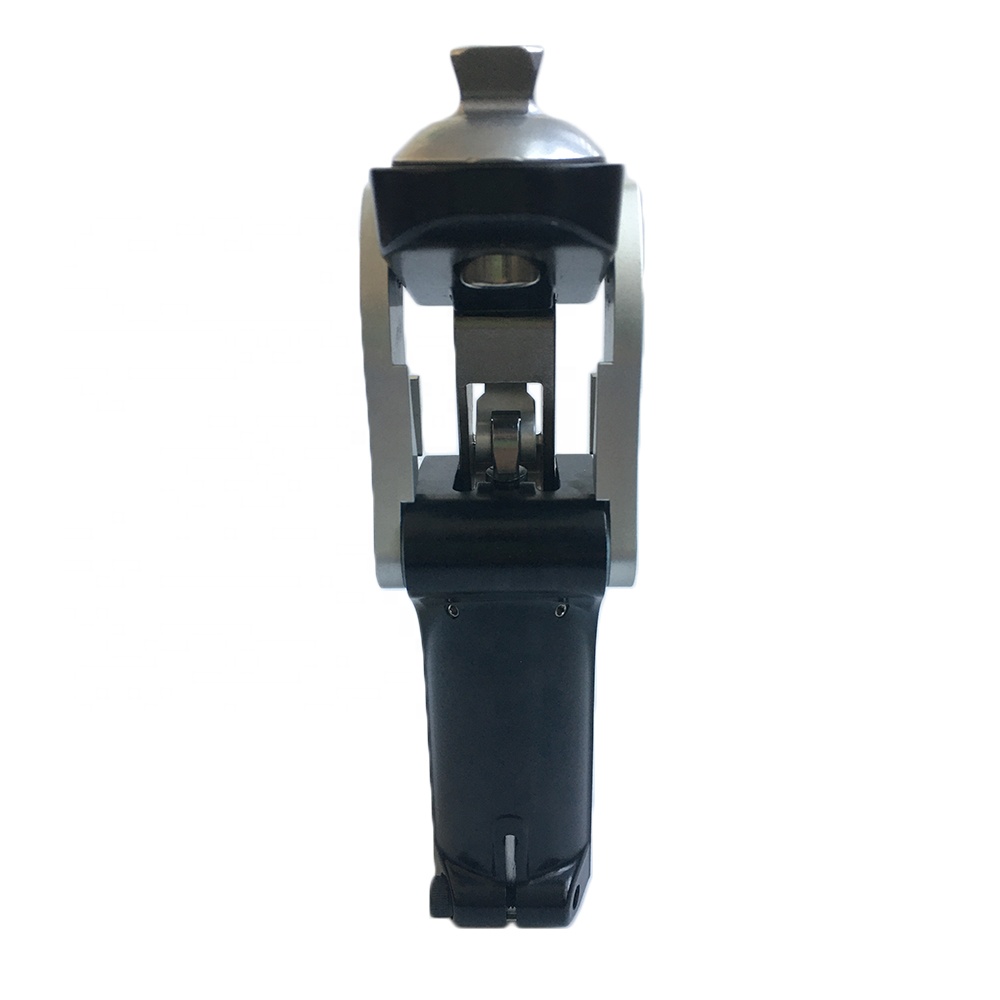

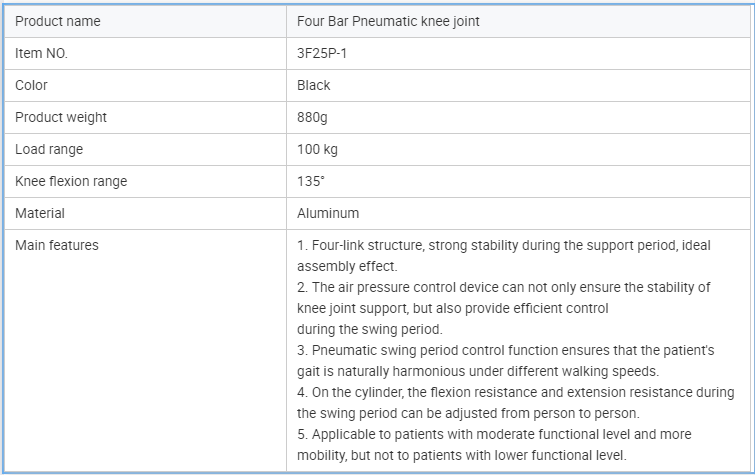

Prosthetic Limbs Knee Prosthesis Aluminum Four Bar Pneumatic Knee Joint Prosthetic Knee

1.ISO 9001:2000/CE passed
2. Article No.: 3F25P-1
3.Material:Aluminum
4.Product weight: 0.8kg
5.Sizes: For Adult
6.Body weight up to: 100kg
7.MOQ:1PC
8.Delivery time: within 3-5 days after receiving payment.
9.Warranty time: after delivery time for one year.

Product Description

The swing of the knee joint is connected to the upper part of the joint body through the swing shaft, and is connected to the lower part of the joint body through the knee joint shaft. Together, they form a body weight-based locking device. This mechanism works with the proper alignment of the knee joint. , To ensure safety and stability during the support period.

Applications

Suitable for thigh amputees who weigh no more than 125kg and require medium use (high support period stability and medium swing period control). It is also suitable for those who do not like the amputees of the locked knee joint with low functional requirements. It is not suitable for those Those with higher functional requirements.

Maintenance

The joint must be inspected and repaired if necessary at least every 6 months!

Inspect

. The alignment

The screw connections

The suitability of the patient (e.g.weight limit,degree of mobility)

· Loss of lubricant

· Damage to the joint and anchor adapter

Care

· Clean the joint with a soft cloth moistened with a little mild benzene.Do not use any more aggressive cleaning agents because these can damage the seals and bushes.

· Do not use compresed air for clenning!Compressed air can force dirt into the seals and bushes.

This can lead to premature damage and wear.

Packing&Shipment

.The products firstly in a shockproof bag, then put into a small carton, then put into a normal dimension carton, Packing is suitable for the sea and air ship.

.Export carton weight: 20-25kgs.

.Export carton Dimension:

45*35*39cm

90*45*35cm

.FOB port:

.Tianjin, Beijing, Qingdao, Ningbo,Guangzhou

Payment and Delivery

.Payment Method:T/T, Western Union, Paypal, L/C

.Delivery Tiem: within 3-5 days after receiving the payment.
